Assignment 3. Final (Massing | Lasercutting)

Physical Model (DRAFT):
The material that I used for this model was 3mm box board, however for some reason the lasercut wouldn't cut through it even though all settings were adjusted to suite it. The pieces did fit together but it just fell apart and did not look very nice. I will print a new one using different material before final submission of the 3D models.

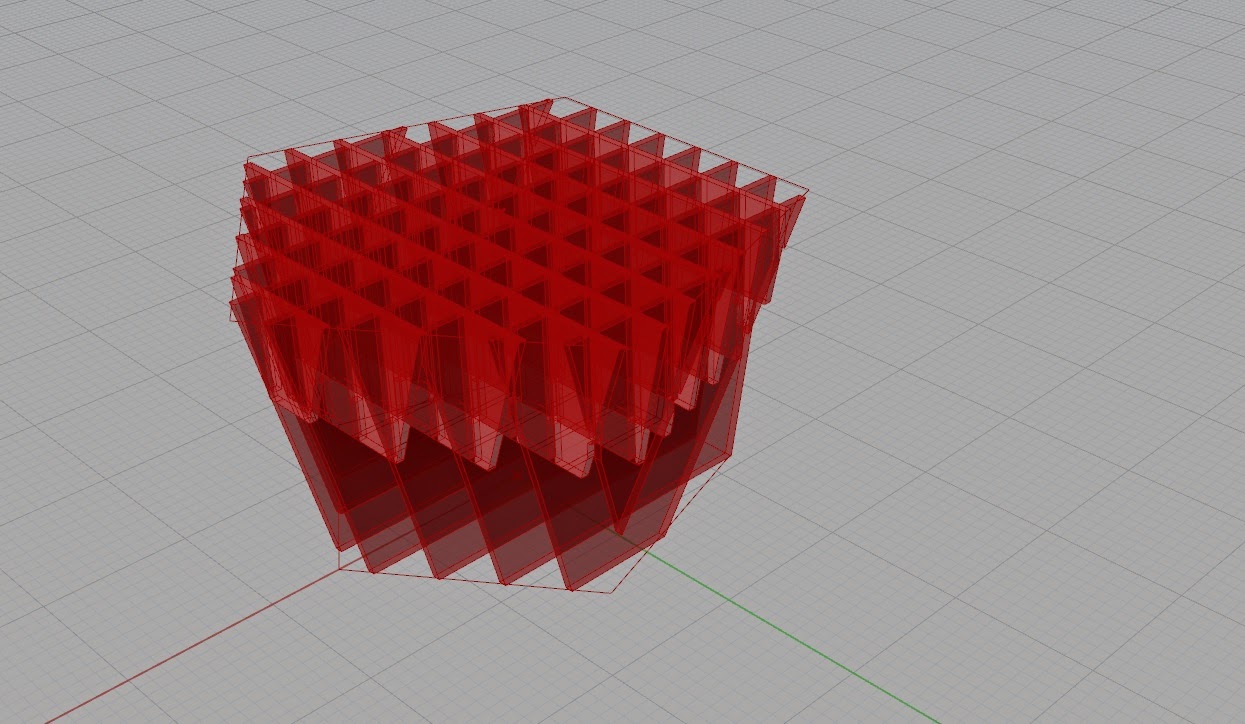

Top view of baked pieces in Rhino:

Illustrator file laid out ready to be lasercut:

I decided to use plywood instead of box board since it didn't work very well.

Lasercut pieces:

Final Model:

Downloads:
Rhino File: https://www.dropbox.com/s/z9206x47xx436ma/Assignment3-VivienChan-RhinoFile.3dm

Grasshopper 3D File: https://www.dropbox.com/s/pox45n71woldp6e/Assignment3-VivienChan.gh

References:
DigitalToolBox, Waffle Part 1 by DigitalToolBox, https://www.youtube.com/watch?v=6O61dMrCN0U
(Part 1- 6)

(Vivien Chan z3466375)

Assignment 2. Final (3D Printing)

Downloads:
Rhino 3D File: https://www.dropbox.com/s/unsoeql3i7002gw/Assignment2-VivienChan-01.3dm

Grasshopper 3D File: https://www.dropbox.com/s/wyycytjjwt6prcs/gh-Assignment2-VivienChan-01.gh

 First attempt at 3D printing:

  Final 3D print:

Sticking each individual strip together.

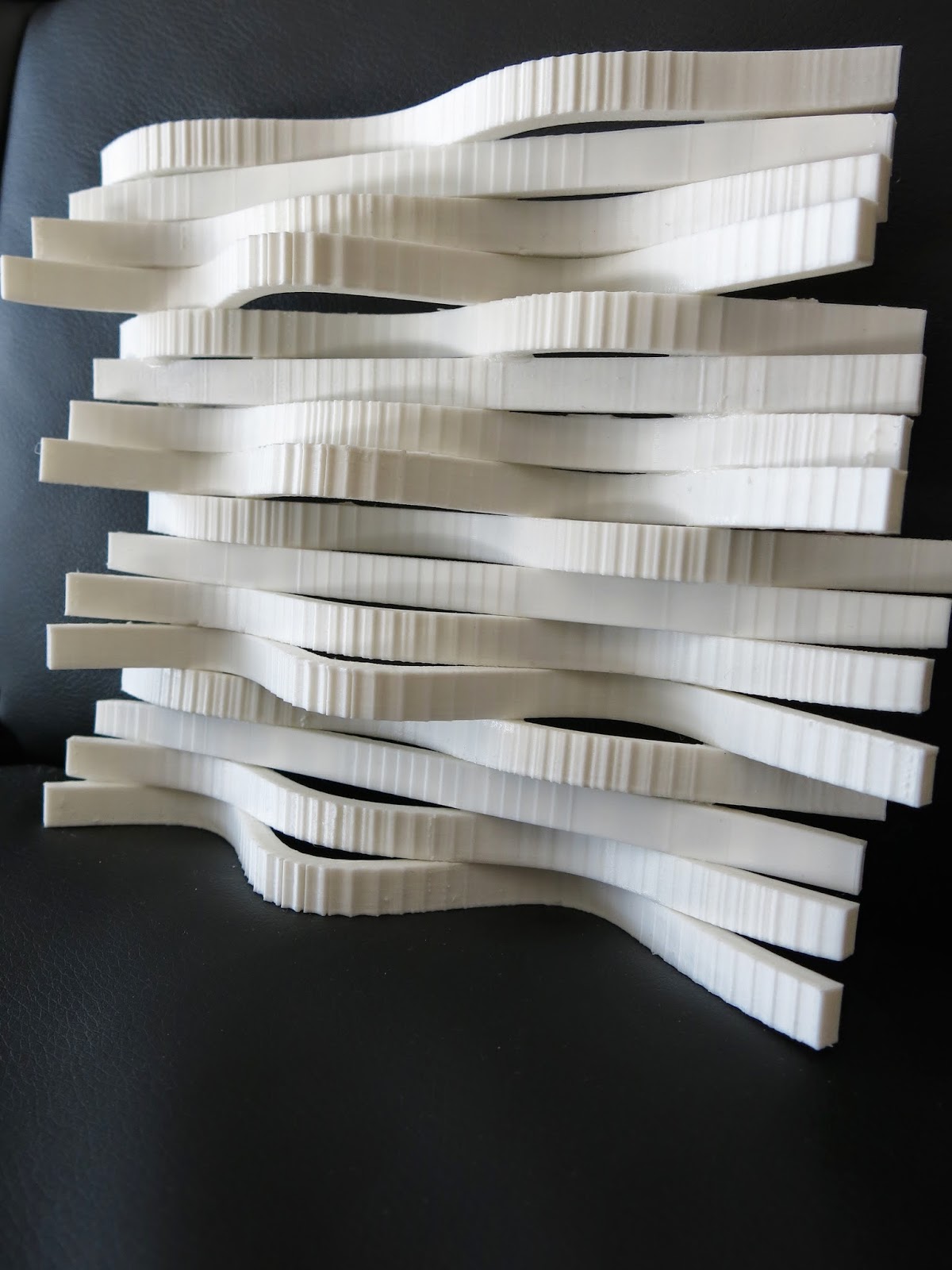

Finished product:

Reference:
Nick Senske, Week 5: Parametric Design Process- Computational Methods, Fall 2012, https://www.youtube.com/watch?v=5A_1IBKdS4Q&index=5&list=FLmGnIbmOs2l7k3MuaqKVZ2A

(Vivien Chan z3466375)
